DAVID HORN COLLECTION

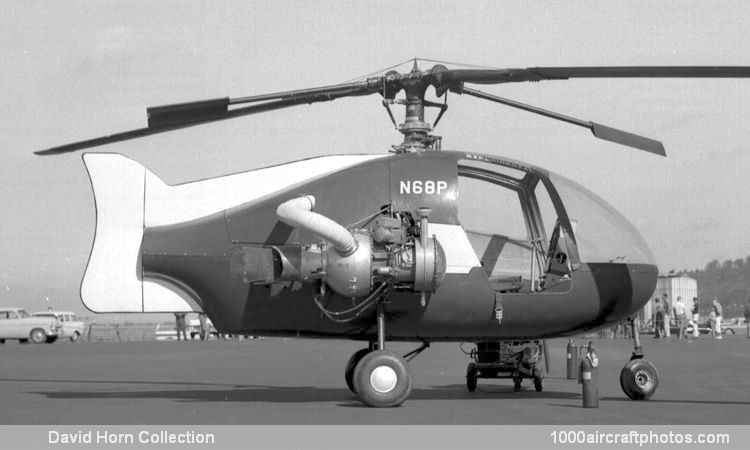

No. 8787. Monte-Copter 12 (N68P c/n 1)
Source unknown, via Peter M. Bowers

Monte-Copter 12

03/31/2009. Remarks by Johan Visschedijk: "Brainchild of Maurice L Ramme of Seattle, Washington, this aircraft began life in 1955 as the two-seat Monte-Copter 10, powered by an 135 hp Lycoming O-290-D2 engine driving a two-blade rotor with servo-control surfaces mounted at 90° to the blades. It was fitted with small wings and a tail boom carrying twin fins.

After initial testing the aircraft was modified into the Monte-Copter 10A by removing the wings and fuselage skin, and replacing the Lycoming engine by two 160 shp Continental 140 air compressors (license-built Turboméca Palouste). These engines were mounted on each side of the fuselage and supplied compressed air to the rotor-tip nozzles to turn the rotor.

Further modifications led to the pictured Monte-Copter 12 by replacing the fuselage skin, and fitting a single rudder in the jet efflux, instead of the former tail boom. In this form it was flown for the first time in May 1958."


Created March 31, 2009
