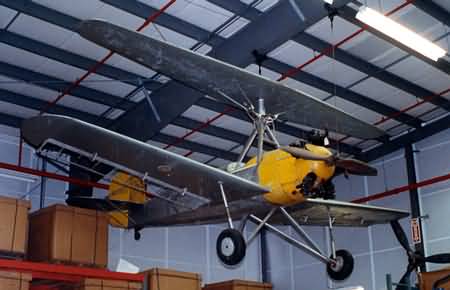

From the Aerofiles: "In the Herrick design, a symmetrical airfoil-shaped rotor was mounted on a horizontal hinge about which it could rotate within certain limits. When flying as a biplane, the upper wing could be prevented from rotating by braces connected to its pylon. When rotating, the wing then assumed the character of an autorotative system."

(Mark Crowson Collection)
