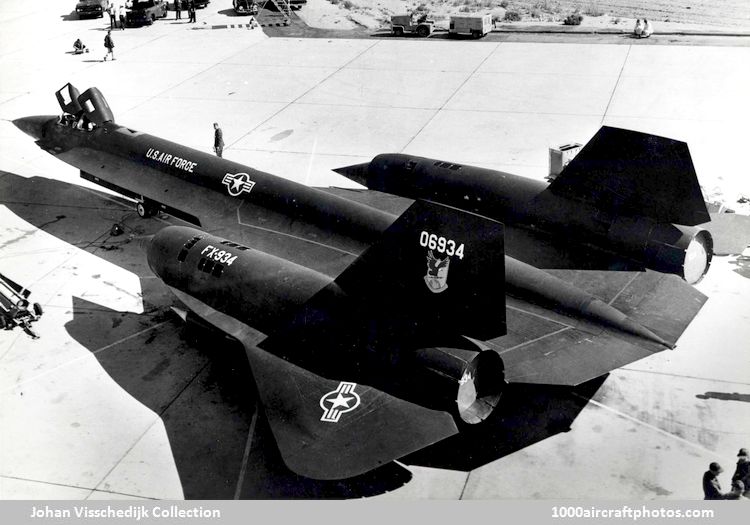

No. 14136. Lockheed YF-12A (60-6934 c/n 1001) US Air Force
Photograph from Lockheed

Lockheed YF-12A

11/15/2022. Remarks by Johan Visschedijk: "The YF-12A was an interceptor derivative of the A-12, the world's first Mach 3ยท0 cruise-capable aircraft which had first flown on April 26, 1962. Three of a total of eighteen A-12 strategic reconnaissance aircraft - predecessors of the larger and heavier SR-71 - were completed as dedicated single-seat interceptor fighters (the 11th, 12th and 13th airframes, serialed 60-6934 to 60-6936, c/n 1001 to 1003) under the designation YF-12A, the first of these flying on August 7, 1963.

Powered by two Pratt & Whitney JT11D-20B (J58) turbo-ramjets each having a reheat thrust rating of 32,500 lb (14 742 kg), of unique blended-body design and largely constructed of titanium alloy, the YF-12A had a Hughes AN/ ASG-18 pulse doppler fire control system and provision for four Hughes AIM-47A (GAR-9) air-to-air missiles in each of two bays in the fuselage chines.

The YF-12A established a series of absolute world speed and altitude records in May 1965, but was not the recipient of production contracts and was relegated to the role of research aircraft in a program commencing in December 1969 and continuing into 1979."

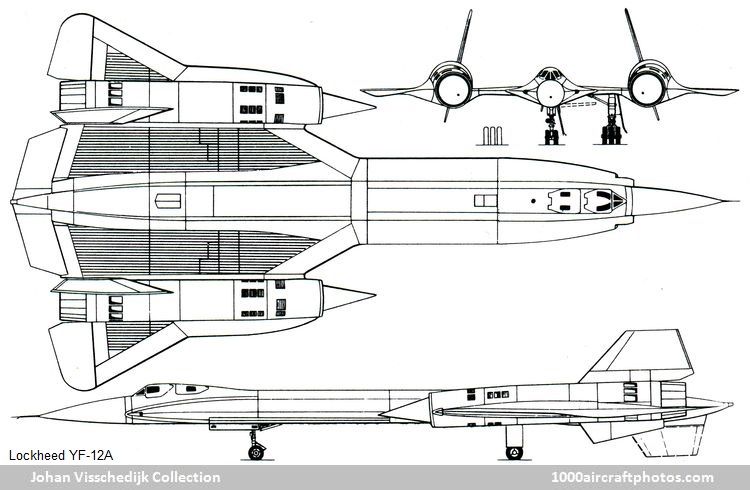

Lockheed YF-12A


Created November 15, 2022
